Insert Tip Grinders – Periphery, Land, Complex Insert Shapes
WAIDA Insert Tip grinding machines – CBN, PCD, Carbide, Ceramic, Cermet Inserts
Almost all well-known manufacturers of insert tips worldwide are users of Waida machines.
APX-50 Fully Automatic 5 Axis Complex Insert Grinder
Fully Automatic machining of dual side lands for standard inserts and Fully Automatic machining of 3D shape / complex inserts, that are impossible to process with conventional insert grinders.
5-axis control enables 3D-shape grinding that was not possible with conventional machines, such as surface grinding, partial workpiece grinding, and selection of grinding mark direction
Equipped with original general support application (ToolLab) as standard.
Can be equipped with a pallet changer.
New high-torque, high-rigidity structure adopted.
Improved maintainability and power saving.
CE standard specification including fully-covered design for safe working environment.
High functionality while saving floor space.
Possible to side dress the grinding wheel.
Standard Insert Grinders:
APX-40 Fully Automatic Combined Insert Periphery Grinder
Fully Automatic processing of periphery and dual side lands of standard inserts
Improving the measuring device improves the stability and reliability of workpiece measurement results
Machining of double-sided land by work piece switching method
Equipped with original general support application (ToolLab) as standard
Can be equipped with a pallet changer
New high-torque, high-rigidity structure adopted
Improved maintainability and power saving
CE standard specification including fully-covered design for safe working environment
Can use Horizontally-placed pallets
APX-105 Fully Automatic Insert Periphery Grinder
Fully Automatic combined insert periphery grinding and processing of dual side lands in one clamping
Double-sided land processing with one clamping
Equipped with an original interactive program (ToolLab) that enables 3D simulation
Can be equipped with a pallet changer
New high-torque, high-rigidity structure adopted
Improved maintainability and power saving
CE standard specification including fully-covered design for safe working environment
Can use Horizontally-placed pallets
Equipped as standard with an automatic centering device that improves work efficiency
APX-101 Fully Automatic Insert Periphery Grinder
Machining of outer periphery and single one side land
Standard basic fully automatic machine that can select options to meet a wide range of needs
Choose from 3 different workheads for standard, high clamping pressure, and single-sided land machining
original interactive program (ToolLab) capable of 3D simulation can be selected
Three vertically-placed pallets (WAIDA standard) can be equipped
New high-torque, high-rigidity structure adopted
Improved maintainability and power saving
CE standard specification including fully-covered design for safe working environment
An automatic centering device that improves work efficiency can be selected.
*Hover the mouse on product images to view details.
APX-50 Fully Automatic 5 Axis Complex Insert Grinder
APX-50 Fully Automatic 5 Axis Complex Insert Grinder

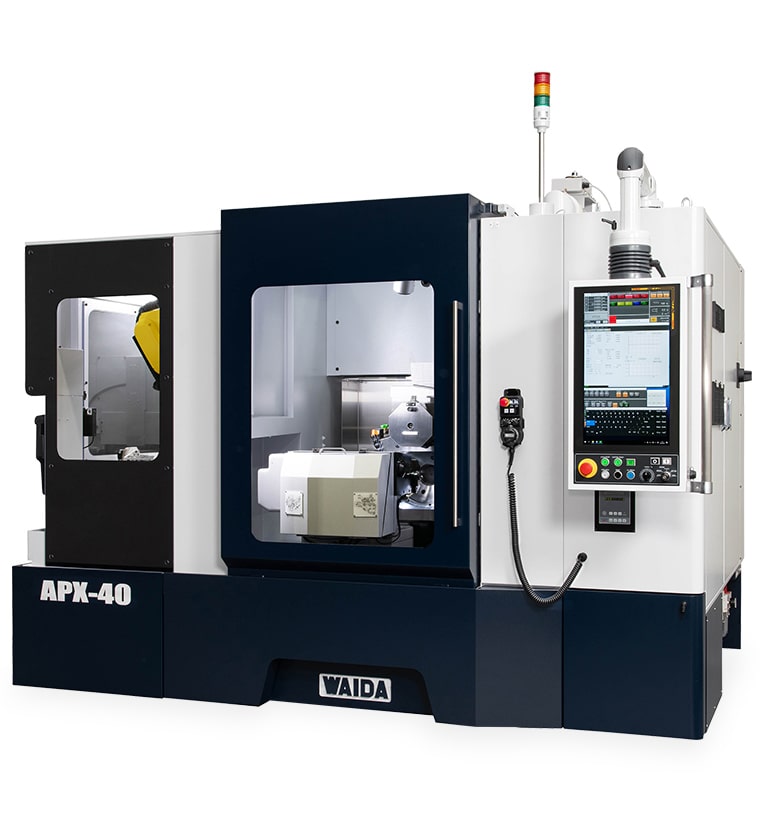

APX-40 Fully Automatic Combined Insert Periphery Grinder
APX-105 Fully Automatic Insert Periphery Grinder
APX-101 Fully Automatic Insert Periphery Grinder

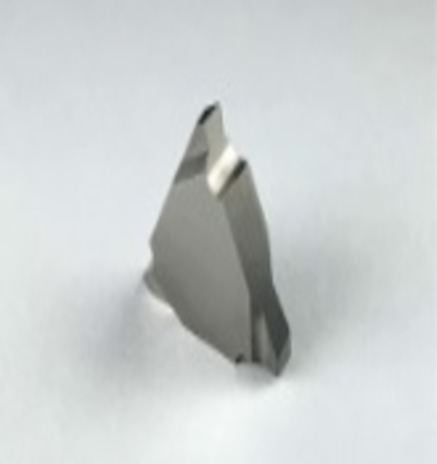

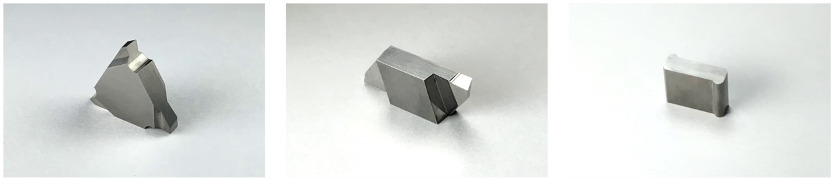

Standard Inserts Processed on Waida Machines
